3-Phase Autotransformer – 3kVA
Request A Quote

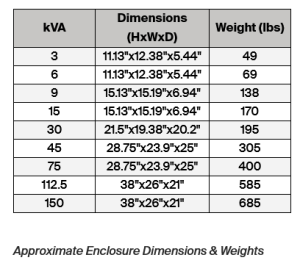

3-Phase Autotransformer Dimensions and Weights
The HPS autotransformer is a 3-Phase Autotransformer - 3kVA designed to convert any 2 of the voltages listed above in order to run equipment such as solar panels, motors, CNC machines, welders, conveyor systems, pumps, printing equipment, fabrication tools, datacenter equipment, and other business machines.
RoHS CompliantAuto, 3kVA, 600-480-400-240-208V, CU, 3R, Neutral, 60Hz | Part Number KI-Y003QTCB3L0U-HPS
Is an autotransformer right for your application? Read more about HPS autotransformer here.
Primary Voltage: 600 Y 347 480 Y 277 400 Y 231 240 Y 139 208 Y 120
Secondary Voltage: 600 Y 347 480 Y 277 400 Y 231 240 Y 139 208 Y 120
- Fully Resin Encapsulated
- CSA and UL Approved
- 60 Hz Frequency
- 80°C Temperature Rise (3-15 kVA)
- Copper Windings
- 130°C Insulation Class (3-15 kVA)
- Vacuum pressure Impregnated Windings
- NEMA 3R Outdoor/Indoor Enclosure
- Mechanical lugs
Transformer may appear different than pictured.
